2 inch AlN Templates

2 inch AlN Templates

Specifications:

Item AlN-T-C-C50

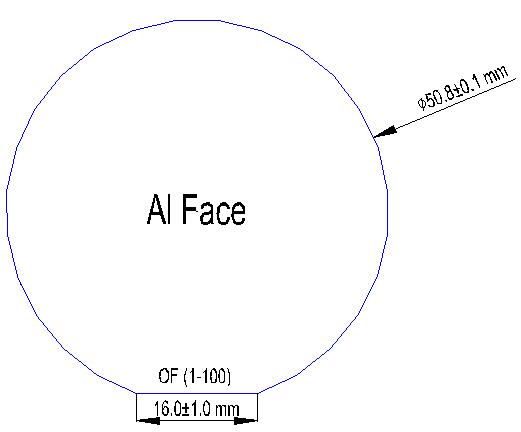

Dimensions Ф 50.8 mm ± 0.1 mm
Substrate Sapphire (Single Side Polished)m
Thickness 4 ~ 5 µm
Orientation C-plane (0001) ± 1°
Conduction Type Semi-Insulating
Crystalline quality XRD FWHM of (0002) < 350 arcsec.
XRD FWHM of (10-12) < 450 arcsec
Edge Exclusion zone < 2 mm
Surface Roughness Ra < 5 nm (10 µm x 10 µm)

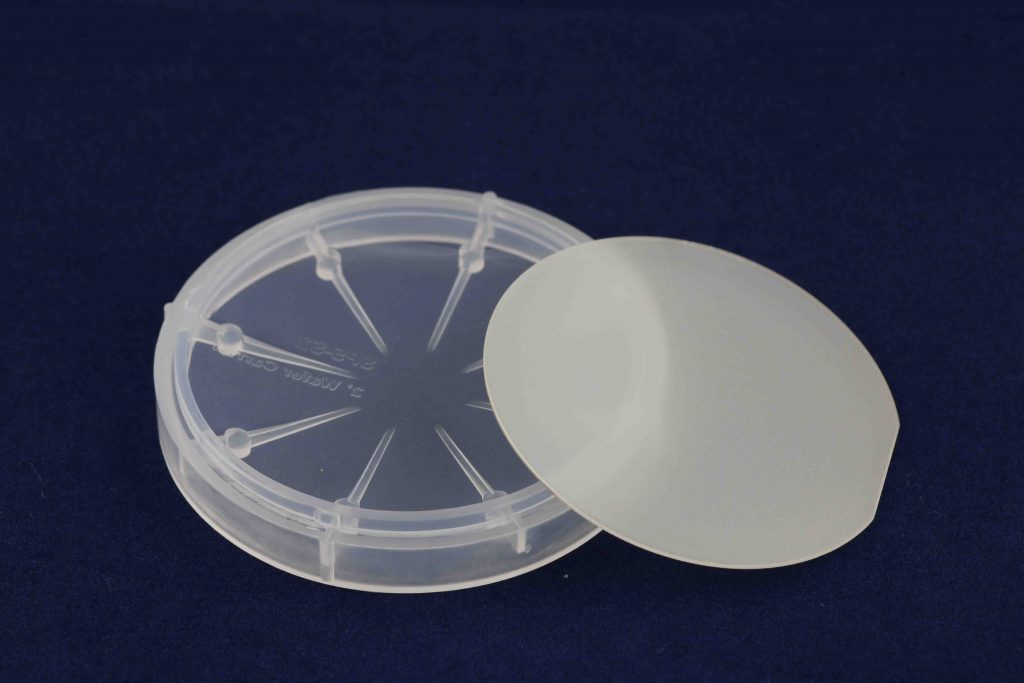

Package Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere.

* Other thickness, size can be customized
